CONTROL PHOTOS - Hover Descriptions

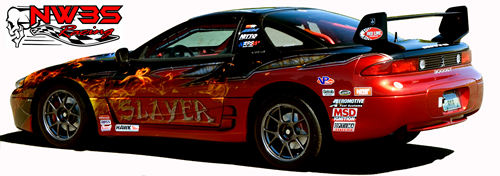

NW3S SLAYER Drag Car, 3000GT racing VR4

Interior:

What's That Do?


We get asked what that is or this is

  • So
  • Here are some multi-alt images that will show you!
  • Click your mouse over the region or area to go D-Image.
    Another window will open with that area highlighted.
    When done just close the new window to return here.

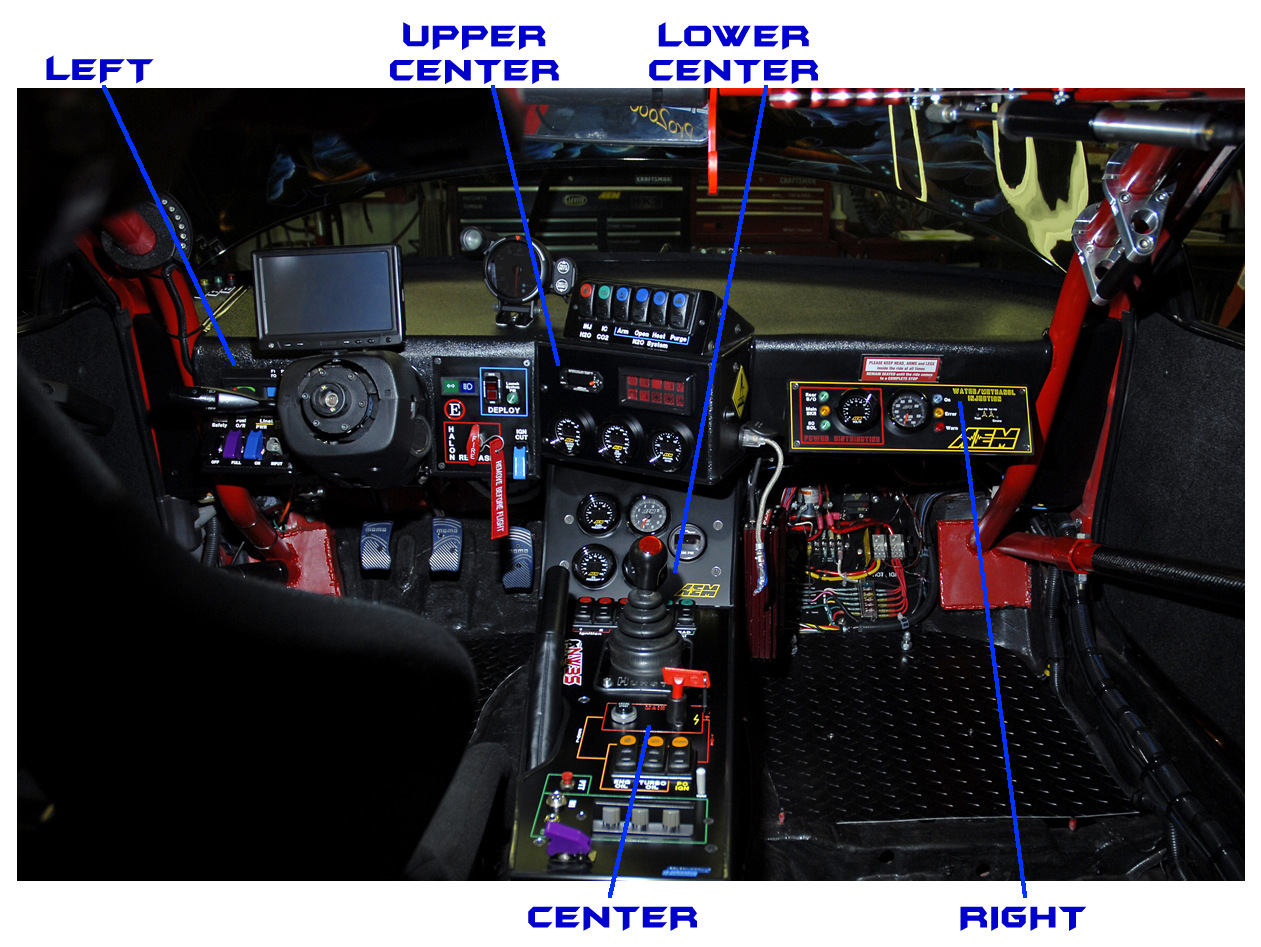

Entire main dash of racecar with hotspots to select more detail.



Back to main photos Index

For more details on these controls and more
go to the BUILD MENU Section



All Images are © NW3S Racing
Duplication Prohibited without Permission

nw3s.net 2007-2013

Left main dash areas Upper Center Dash area Lower Center Dash area 12v power visual status and Water/Methanol Injection System Lower Right Center Console areaRadio controls, preoilers, PC power, Emergency Override, starter, power up. Pressure gauges, N2O pressure, Ignition, Fan controls, Fuel pump control Defi Tach w/ shift light, parachute release, ignition kill, halon fire system release, Top N20, H20, CO2 controls, Intercooler Temp monitor system, Warning light cluster, temp meters. Launch controls, fuel level, cooling system ID lights, LineLock ind lights, Progressive shift light system AEM Water & Methanol Injection system for flow rate, error and warning alerts.
