PHOTOS - MISC
NW3S SLAYER Drag Car, drag racing brakes for the 3000GT and lightweight wheels.

Wheels/Brakes
PHOTOS
  • Here are some photos of the brakes we implemented and the wheels
    we chose to carry the hoosier drag slicks.
  • To see the images in larger format and a lot more detail: click the image
    (most of the thumbnails below go to larger images and open in new window)


Here are the drag racing brakes by the company "The BrakeMan".
These are zero drag brake calipers and the rotors and calipers weight at least
ONE-THIRD less than OEM. No kidding - 30% of the weight with awesome stopping power.

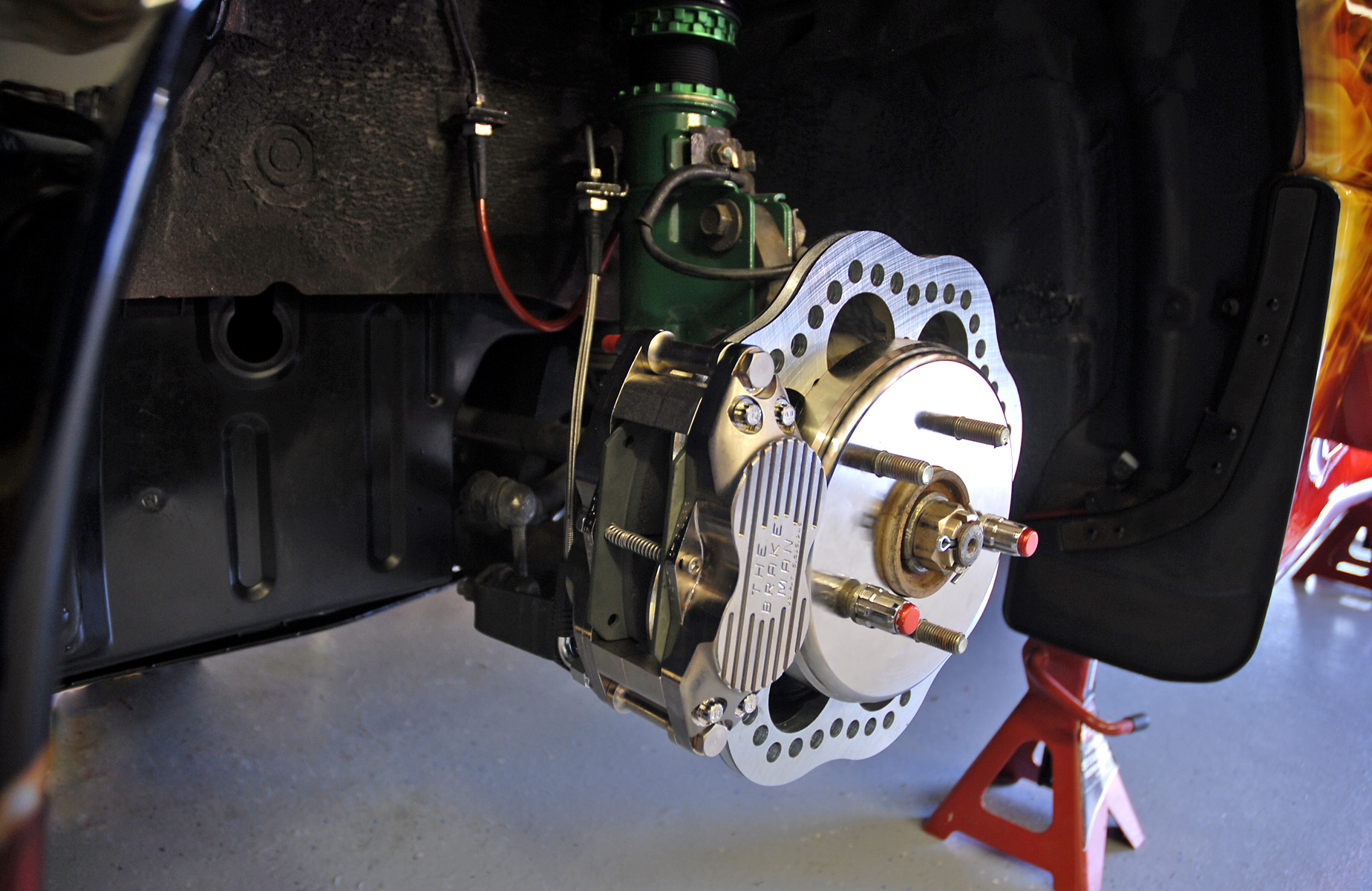

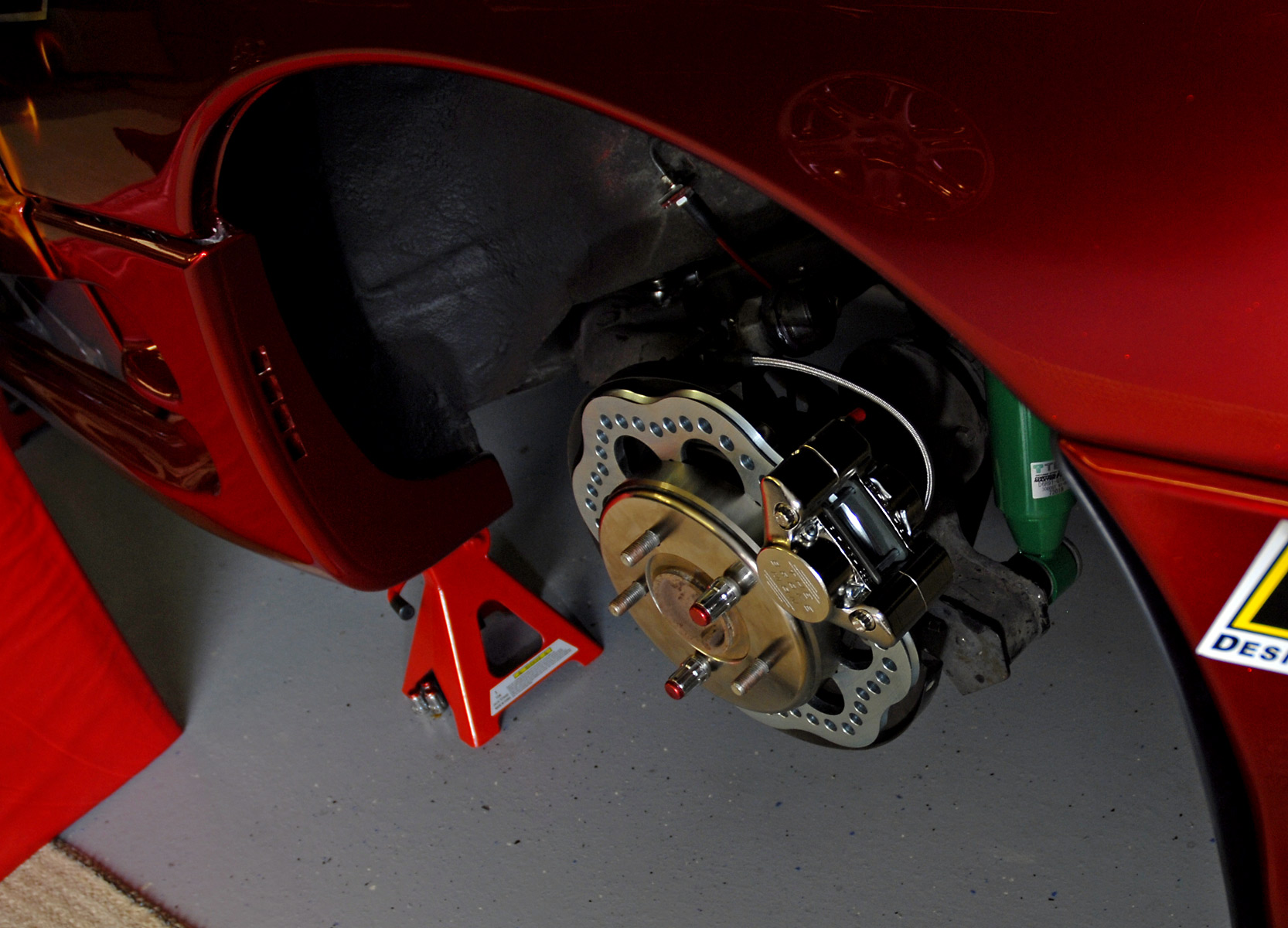

Front Left brakes showing the Brakeman F3 tornado calipers and revolution rotors.

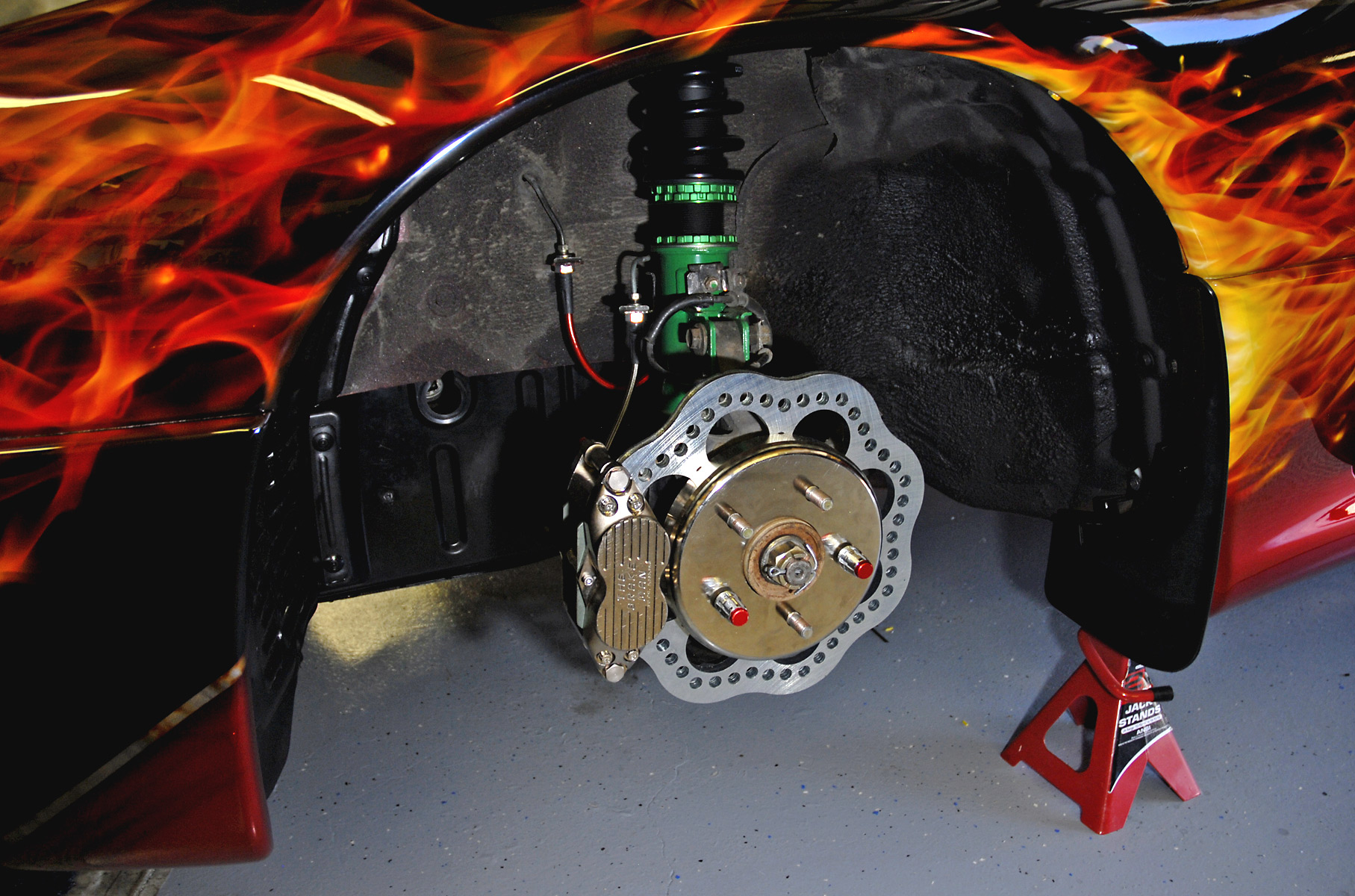

Front left brake system showing the BrakeMan F3 Tornado caliper and Revolution rotor.

Another view of the front brake system with tornado F3 calipers and revolution rotors by the Brakeman.
Front brake rotor and caliper - F3 calipers by The BrakeMan Company.

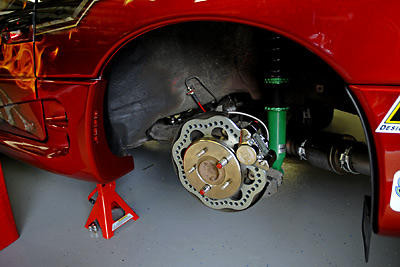

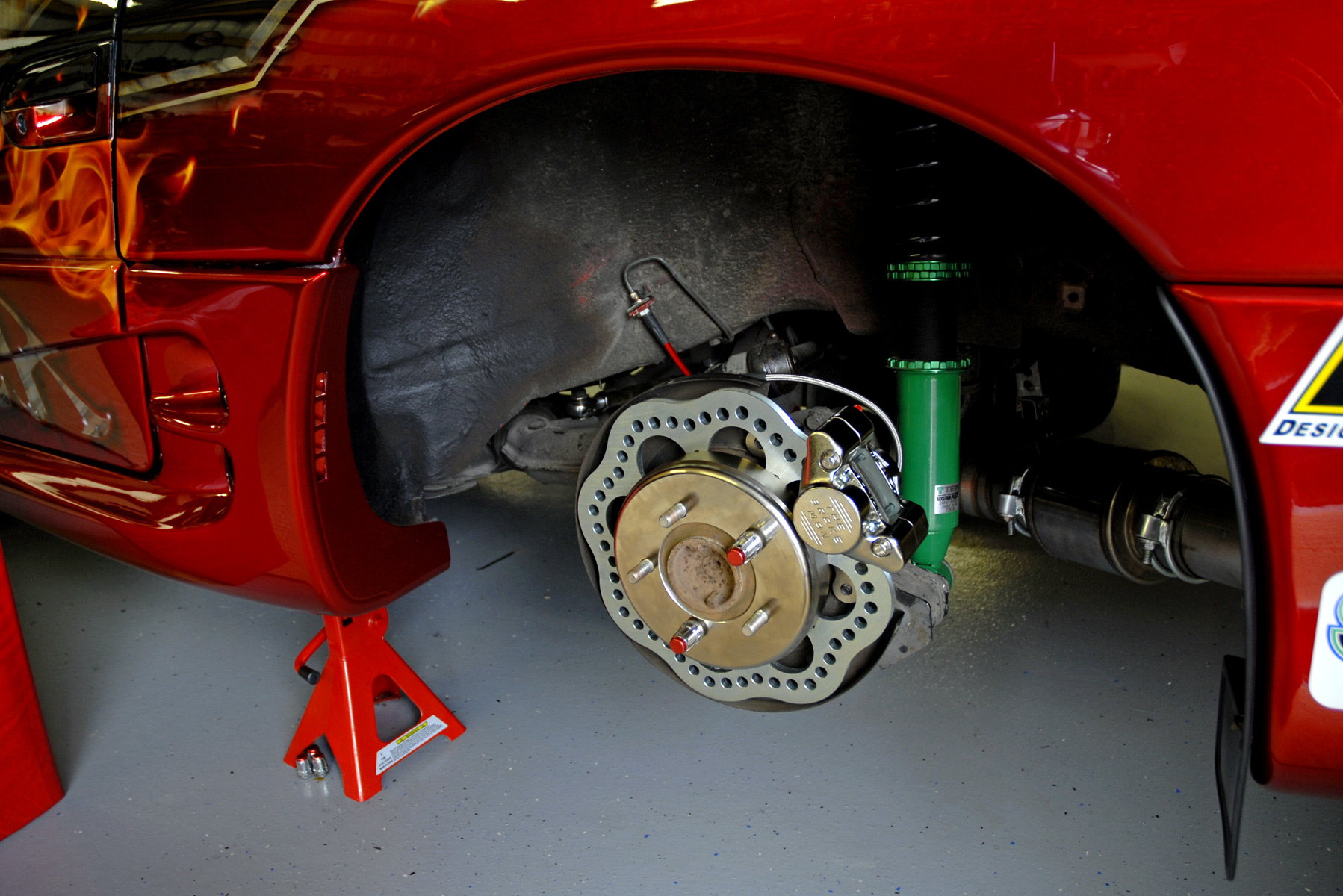

Left rear brake system showing the F1 tornado caliper by The BrakeMan Company.
Rear Brakes: F1 Tornado caliper on a Revolution Rotor.

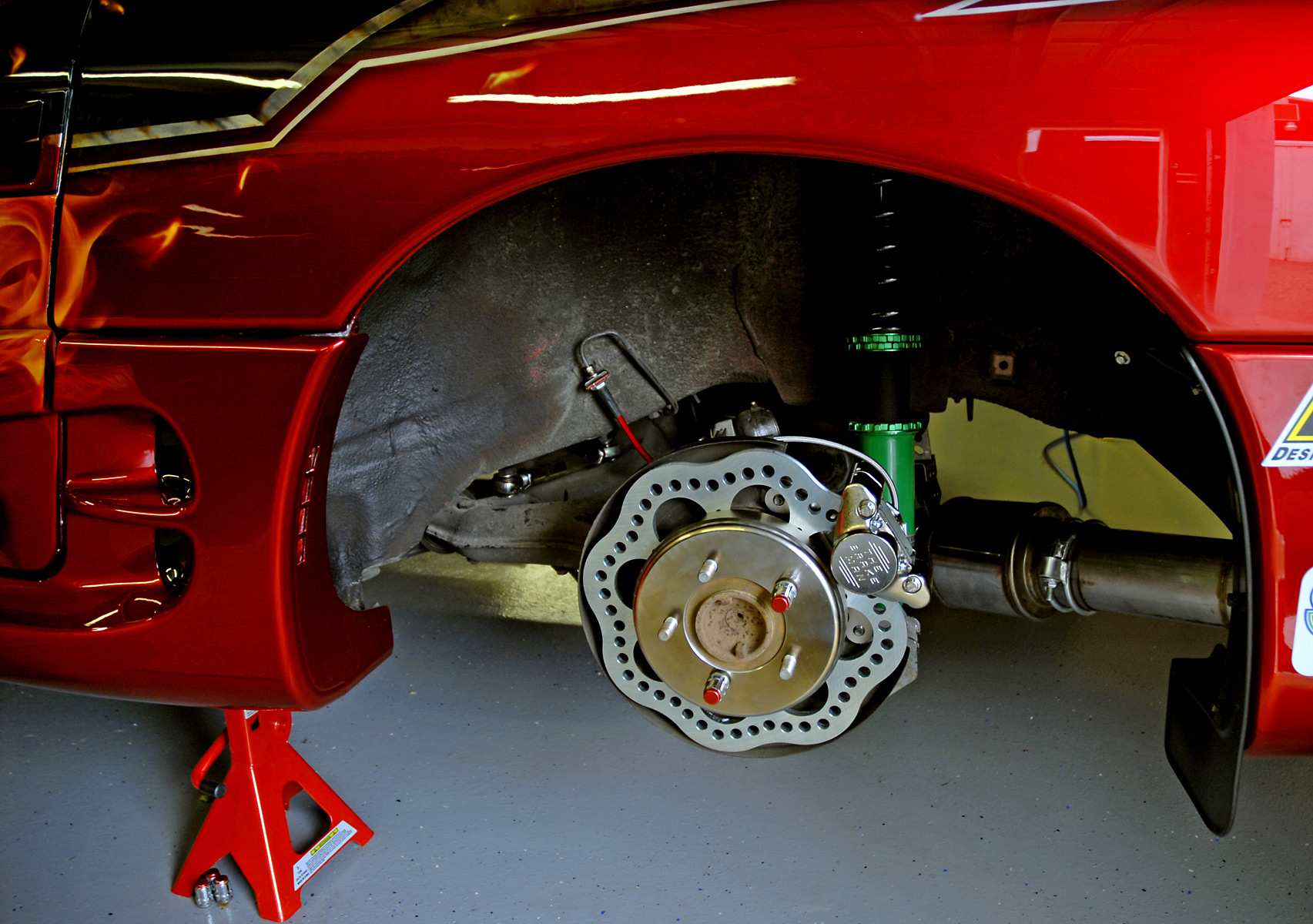

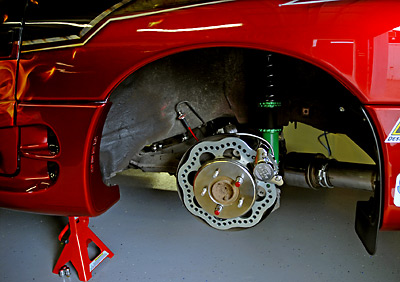

Rear brake system on the 3000GT. These brakes are made just for drag racing.
Another view of the right rear braking system on the 3000GT. Made just for this car by The BrakeMan in June 2011.

Another view of the rear brake system. F1 tornado caliper on a revolution rotor. All parts are by "the brakeman".
3000GT Rear Drag Racing Brake system.

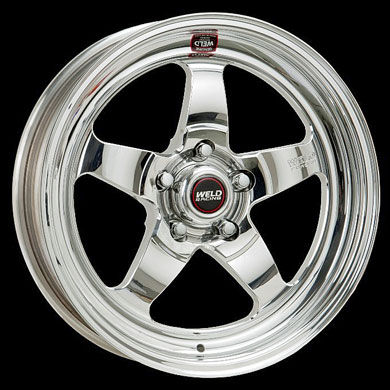

Weld Racing forged aluminum drag racing wheels.
Weld Racing 15" Forged Aluminum drag racing wheels.
Polished. Lightweight @ 14lbs each and approximately 32 lbs. when combined with the Hoosier racing slicks mounted.

3000GT Drag Racing Brakes

Weight comparison
(lbs)
(OEM weights are for 2G VR4)

OEM
BRAKEMAN
Front Calipers
9.4
3.4
Rear Calipers
5.6
2.4
Front Rotors
17.6
6.2
Rear Rotors
14.0
5.4

We use and recommend Jim's Racing Tires for all racing tire and wheel needs!


DETAILS ON THE WHEELS AND BRAKES CAN
BE VIEWED ON THE BUILD SECTION
HERE
